冻融循环对河岸带高寒草甸土体抗剪特性及微观结构的影响

doi:10.13866/j.azr.2025.10.08

Abstract

Abstract:

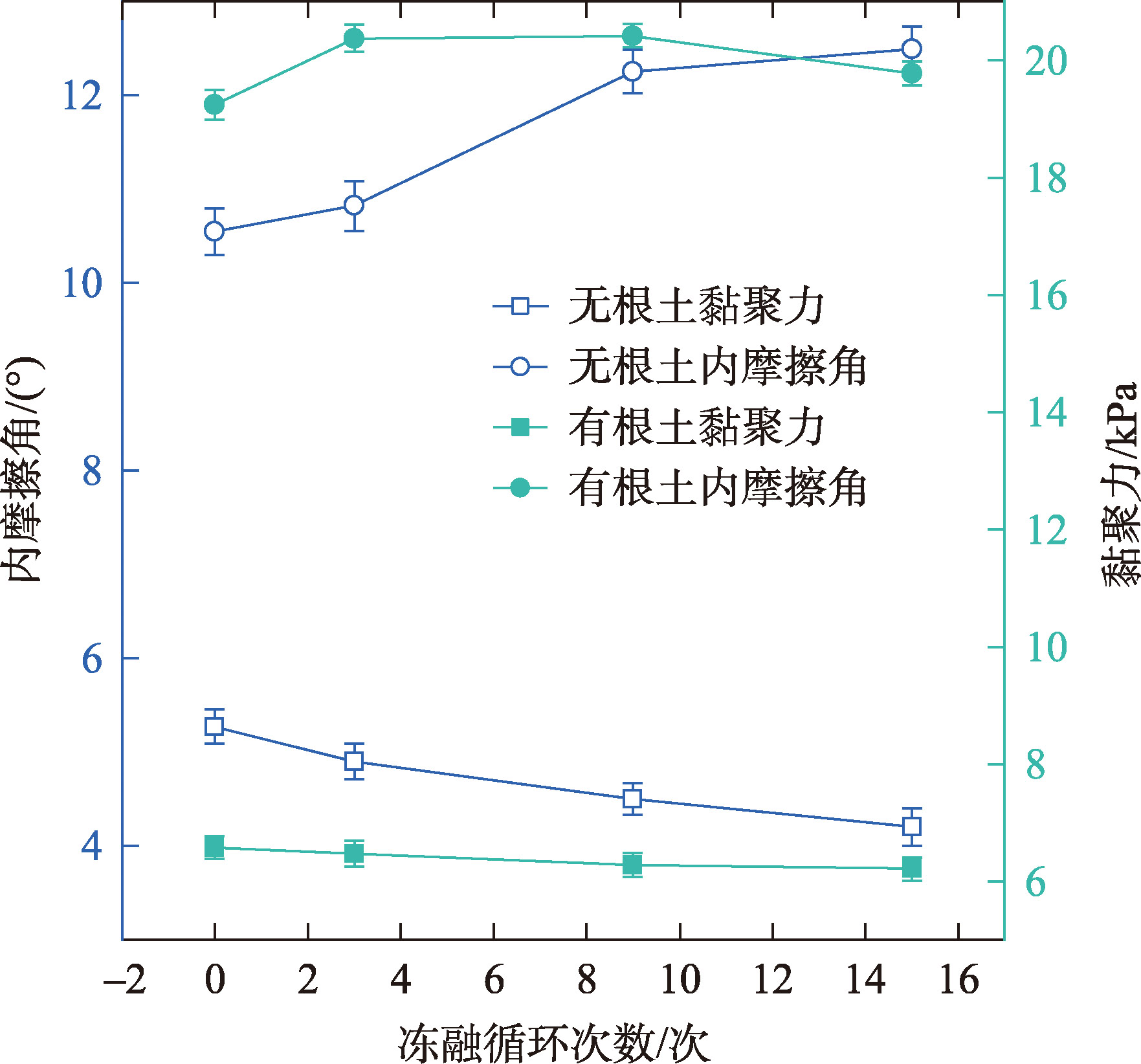

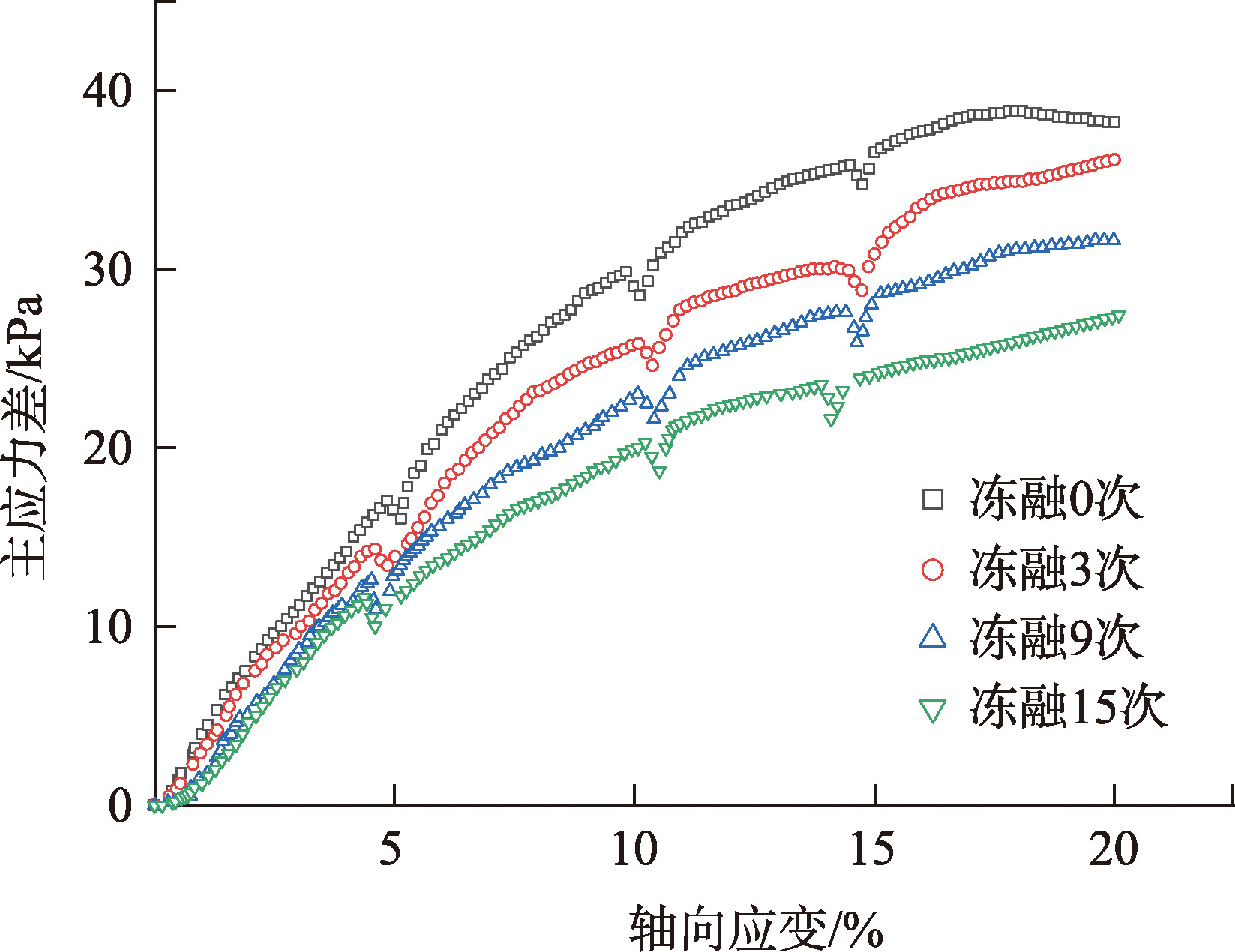

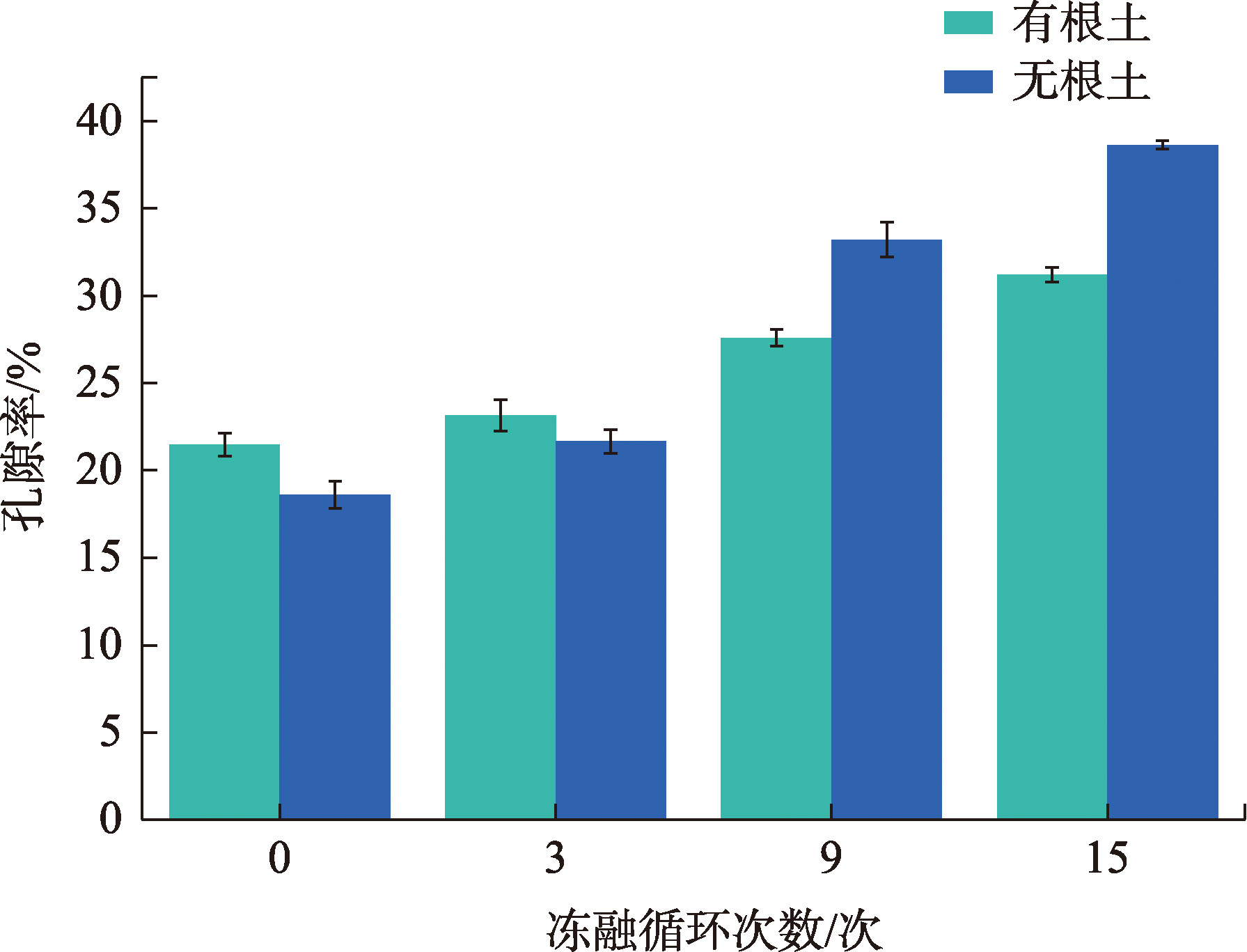

The mechanical properties of root-influenced soil on the meandering riverbank in the source region of the Yellow River under freeze-thaw cycles directly affect its stability and lateral evolution. Using triaxial shear tests performed on root-influenced soil with a root content of 7% under freeze-thaw cycles, in combination with microstructural analysis, this study investigated the evolution law of the shear resistance characteristics of the soil in the alpine meadow riverbank zone in the source region of the Yellow River under freeze-thaw cycles and explored the regulatory mechanism of the meadow root system. The results showed that after 15 freeze-thaw cycles, the soil mechanical properties deteriorated significantly. In root-free soil, the difference of principal stress decreased by 30.67%, cohesion decreased by 25.47%, and porosity increased by 20.02%. In contrast, in root-influenced soil, the difference of principal stress decreased by only 28%, cohesion decreased by 5.8%, and porosity increased by<10%. Microscopic analysis showed that the root system constrains the fragmentation and migration of particles through reinforcement and inhibits the expansion of pores through the anchoring effect, thereby reducing freeze-thaw damage. The findings reveal the mechanism by which plant roots enhance the freeze-thaw resistance of soil, thus providing a theoretical basis for the ecological restoration and stability maintenance of riverbank zones in cold regions.

Key words: source region of the Yellow River, freeze-thaw cycle, shear strength, rooted soil, microstructure

XU Pengkai, ZHU Haili, LI Benfeng, ZHANG Hailong, WU Yuechen, HONG Chenze, LIU Yabin, LI Guorong. Effects of freeze-thaw cycles on shear characteristics and microstructure of alpine meadow soil in riparian zone[J].Arid Zone Research, 2025, 42(10): 1841-1850.

Figures/Tables 12

Fig. 1

Tab. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

References 31

[1]	Zhang Y, Zhou D, Guo X. Regional climate response to global warming in the source region of the Yellow River and its impact on runoff[J]. Science China Earth Sciences, 2024, 67(3): 843-855.
[2]	Song L, Wang L, Luo D, et al. Assessing hydrothermal changes in the upper Yellow River Basin amidst permafrost degradation[J]. Climate and Atmospheric Science, 2024, 7(1): 57.
[3]	童生春, 李国荣, 李进芳, 等. 黄河源高寒草甸退化秃斑地土壤基本特征及其风蚀规律[J]. 水土保持研究, 2023, 30(4): 10-17.
	[Tong Shengchun, Li Guorong, Li Jinfang, et al. Characteristics and wind erosion in degraded barren patches of aipine meadow in the source of Yellow River source[J]. Research of Soil and Water Conservation, 2023, 30(4): 10-17. ]
[4]	Yang H, Li Z, Lu Y, et al. Modelling of cantilever bank failure for peat-type meander bends in the source region of the Yellow River[J]. International Journal of Sediment Research, 2023, 38(3): 421-431.
[5]	Xing X U, Yuji J, Fan Z, et al. Variation and attribution analysis of runoff and sediment flux in the Tuotuo River using IHA-RVA[J]. Advances in Earth Science, 2023, 38(8): 826-837. doi: 10.11867/j.issn.1001-8166.2023.046
[6]	Dong C, Gu Y, Jia Y, et al. Effects of freeze-thaw cycles on the size distribution and stability of soil aggregate in the permafrost regions of the Qinghai-Tibetan Plateau[J]. Environmental Research Communications, 2023, 5(9): 095008.
[7]	Sheng-bo S, Jian-jun Q, Yuan-ming L, et al. Effects of freeze-thaw cycles on soil mechanical and physical properties in the Qinghai-Xizang Plateau[J]. Journal of Mountain Science, 2015, 12(4): 999-1009.
[8]	Liu J, Chang D, Yu Q. Influence of freeze-thaw cycles on mechanical properties of a silty sand[J]. Engineering Geology, 2016, 210: 23-32.
[9]	张江浩, 冀鸿兰, 杨震, 等. 冻融循环下黄河堤岸砂质壤土宏细观破坏过程[J]. 河海大学学报 (自然科学版), 2024, 52(6): 69-80.
	[Zhang Jianghao, Ji Honglan, Yang Zhen, et al. Macroscopic and microscopic damage processes of sandy loam soils in Yellow River embankment under freeze-thaw cycles[J]. Journal of Hohai University (Natural Sciences), 2024, 52(6): 69-80. ]
[10]	穆彦虎, 陈涛, 陈国良, 等. 冻融循环对黏质粗粒土抗剪强度影响的试验研究[J]. 防灾减灾工程学报, 2019, 39(3): 375-386.
	[Mu Yanhu, Chen Tao, Chen Guoliang, et al. Experimental study on effect of cycles freeze-thaw on shear behaviors of clayey coarse-grained soil[J]. Journal of Disaster Prevention and Mitigation Engineering, 2019, 39(3): 375-386. ]
[11]	Konrad J M. Physical processes during freeze-thaw cycles in clayey silts[J]. Cold Regions Science and Technology, 1989, 16(3): 291-303.
[12]	Gao Zhou, Hu Xia, Li Xiaoyan, et al. Effects of freeze-thaw cycles on soil macropores and its implications on formation of hummocks in alpine meadows in the Qinghai Lake watershed, northeastern Qinghai-Xizang Plateau[J]. Journal of Soils and Sediments, 2021, 21: 245-256. doi: 10.1007/s11368-020-02765-2
[13]	朱海丽, 李志威, 胡夏嵩, 等. 黄河源草甸型弯曲河流的悬臂式崩岸机制[J]. 水利学报, 2015, 46(7): 836-843.
	[Zhu Haili, Li Zhiwei, Hu Xiaosong, et al. Cantilever bank failure mechanism of meadow meandering river in the Yellow River source region[J]. Journal of Hydraulic Engineering, 2015, 46(7): 836-843. ]
[14]	刘国松, 朱海丽, 张玉, 等. 冻融作用对黄河源区曲流河岸土体抗剪特性的影响[J]. 干旱区研究, 2023, 40(10): 1637-1643. doi: 10.13866/j.azr.2023.10.10
	[Liu Guosong, Zhu Haili, Zhang Yu, et al. Influence of freezing and thawing on the shear resistance of meandering riverbank soil in the Yellow River source region[J]. Arid Zone Research, 2023, 40(10): 1637-1643. ] doi: 10.13866/j.azr.2023.10.10
[15]	GB/T 50123-2019. 中华人民共和国住房和城乡建设部: 土工试验方法标准[S]. 北京: 中国计划出版社, 2019.
	[GB/T 50123-2019. Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Standard for Geotechnical Test Methods[S]. Beijing: China Publishing Press, 2019. ]
[16]	王雪奎, 李东军, 朱耀庭, 等. 基于数字图像技术的黏性土颗粒形状分析[J]. 岩土工程学报, 2020, 42(S2): 168-171.
	[Wang Xuekui, Li Dongjun, Zhu Yaoting, et al. Particle shape analysis of clay based on digital image technology[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(S2): 168-171. ]
[17]	Beven K, Germann P. Macropores and water flow in soils[J]. Water Resources Research, 1982, 18(5): 1311-1325.
[18]	Shen J, Wang Q, Chen Y, et al. Evolution process of the microstructure of saline soil with different compaction degrees during freeze-thaw cycles[J]. Engineering Geology, 2022, 304: 106699.
[19]	师智勇, 陈慧娥, 苑晓青, 等. 冻融循环对土体分散性的影响及微观机理分析[J]. 工程地质学报, 2023, 31(1): 51-59.
	[Shi Zhiyong, Chen Hui’e, Yuan Xiaqing, et al. Effect of freezeing-thawing cycles on soil dispersion and analysis of microscopic mechanism[J]. Journal of Engineering Geology, 2023, 31(1): 51-59. ]
[20]	Kong F, Nie L, Xu Y, et al. Effects of freeze-thaw cycles on the erodibility and microstructure of soda-saline loessal soil in Northeastern China[J]. Catena, 2022, 209: 105812.
[21]	刘宽, 叶万军, 景宏君, 等. 季冻区黄土微观损伤识别与宏观力学响应研究[J]. 岩土工程学报, 2021, 43(S1): 192-197.
	[Liu Kuan, Ye Wanjun, Jing Hongjun, et al. Microscopic damage identification and macroscopic mechanical response of loess in seasonal frozen area[J]. Chinese Journal of Geotechnical Engineering, 2021, 43(S1): 192-197. ]
[22]	Sun L, Tao S, Liu Q. Frost crack propagation and interaction in fissured rocks subjected to freeze-thaw cycles: Experimental and numerical studies[J]. Rock Mechanics and Rock Engineering, 2023, 56(2): 1077-1097.
[23]	Wei Z, Yang W, Zhai C, et al. Freezing characteristics and microstructural damage evolution of granular materials in cold regions under freezing-thawing cycles[J]. Environmental Earth Sciences, 2023, 82(7): 191.
[24]	Tang L, Lu Z, Zhao T, et al. Exploring strength deterioration mechanism of soil-rock mixture based on pore structure characteristics under freeze-thaw cycles[J]. Cold Regions Science and Technology, 2024, 217: 104040.
[25]	Wang J, Wang Q, Kong Y, et al. Analysis of the pore structure characteristics of freeze-thawed saline soil with different salinities based on mercury intrusion porosimetry[J]. Environmental Earth Sciences, 2020, 79: 1-16.
[26]	Haji-Akbari A, Debenedetti P G. Computational investigation of surface freezing in a molecular model of water[J]. Proceedings of the National Academy of Sciences, 2017, 114(13): 3316-3321.
[27]	郑郧, 马巍, 邴慧. 冻融循环对土结构性影响的试验研究及影响机制分析[J]. 岩土力学, 2015, 36(5): 1282-1287.
	[Zheng Yun, Ma Wei, Bing Hui. Impact of freezing and thawing cycles on structure of soils and its mechanism analysis by laboratory testing[J]. Rock and Soil Mechanics, 2015, 36(5): 1282-1287. ]
[28]	Leung F T Y, Yan W M, Hau B C H, et al. Root systems of native shrubs and trees in Hong Kong and their effects on enhancing slope stability[J]. Catena, 2015, 125: 102-110.
[29]	刘继红, 崔俊芳, 郭晓军, 等. 植物根系影响土壤水分运动研究的文献计量分析[J]. 土壤通报, 2024, 55(4): 1163-1173.
	[Liu Jihong, Cui Junfang, Guo Xiaojun, et al. An analysis of the influence of plant roots on soil water movement based on bibliometric studies[J]. Chinese Journal of Soil Science, 2024, 55(4): 1163-1173. ]
[30]	Orakoglu M E, Liu J. Effect of freeze-thaw cycles on triaxial strength properties of fiber-reinforced clayey soil[J]. KSCE Journal of Civil Engineering, 2017, 21(6): 2128-2140.
[31]	Wang M, Meng S, Sun Y, et al. Shear strength of frozen clay under freezing-thawing cycles using triaxial tests[J]. Earthquake Engineering and Engineering Vibration, 2018, 17: 761-769.

天然含水率/%	湿密度 /（g·cm^-3）	含根量/%	液限 (w_L) /%	塑限 (w_p) /%	液限指数（I_L）	比重（d_s）	粒径占比/%		土质类别
天然含水率/%	湿密度 /（g·cm^-3）	含根量/%	液限 (w_L) /%	塑限 (w_p) /%	液限指数（I_L）	比重（d_s）	d≤0.075 mm	0.005 mm<d≤0.075 mm	土质类别
45.46	1.552	6.98	24.77	17.6	3.93	2.65	61.63	48.87	粉土
